Product Overview
HOW TO USE
Clamp your instrument around the pick-up coil of the multi-tran.

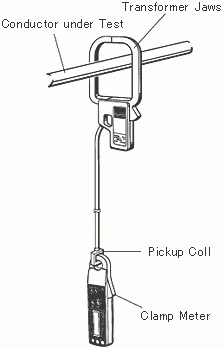

Then, clamp the transformer jaws of the multi-tran on the conductor, as shown below.
Multiply the reading of your clamp meter by 10 to obtain the current value measured.
Specification
| Measuring Range | 0 - 1000A AC |
|---|---|
| Ratio/Range | 10 : 1 (input to output) |
| Accuracy | ±3% of full scale |
| Allowable | 0 - 1000A (continuous), 1000 - 1500A (10 minutes max.) |
| Measurement Time | 3000A (30 seconds max.) |
| Conductor Size | Ø60mm max. (50 × 75mm) |
| Frequency Response | 50Hz/60Hz |
| Withstand Voltage | 3000V AC for 1 minute |
| Dimensions | 240(L) × 85(W) × 30(D)mm 45(L) × 40(W) × 10(D)mm Output coil |
| Weight | 490g approx. |
| Accessories | 9022(Carrying Case) |
| For use with | 2002PA, 2002R, 2004(AC only), 2006, 2007A(AC only), |
| following models * | 2009A(AC only), 2017, 2027, 2031, 2033(AC only), 2037(AC only), 2040(AC only), 2046R(AC only), 2055(AC only), 2056R(AC only), 2412, 2417, 2431, 2432, 2433, 2433R, 2434, 2608A, 2805, 8113(AC only) |
* These Multi-Trans can not be used for leakage current measurement.
Catalog & Document
-
- Instruction Manual
