PORTABLE APPLIANCE TESTER

KEW 6205

Protect life and property from faulty appliances

Battery operated
PASS/FAIL result
Color status backlight
10mA & 30mA RCD test(Isolation transformer built in)
Memory function up to 999 data
Printer output

KEW 6205 equipped with Wireless LAN: available only in Australia and New Zealand.

3D View

Product Overview

This instrument is suitable for performing tests as required by the following standards.
AS/NZS 3760 In-service safety inspection and testing of electrical equipment.

Test Function

Function	Tests of contents
Class Ⅰ Test	Protective conductor resistance (Test current 200mA DC nominal) Insulation resistance test (250V or 500V) Leakage current test (100 to 253V/50Hz) Load current test (100 to 253V/50Hz)
Class Ⅱ Test	Insulation resistance test (250V or 500V) Leakage current test (100 to 253V/50Hz) Load current test (100 to 253V/50Hz)
Extension Lead Test	Protective conductor resistance (Test current 200mA DC nominal) Insulation resistance test (between Line/Neutral-Earth short, Line/Neutral) Leakage current test (100 to 253V/50Hz) Polarity test
RCD Test	RCD test (10mA/30mA)

Specification

Mains voltage indlcation
	Display range	30 to 270V
	Accuracy	±5V
Protective conductor resistance test
	Measuring range	0.00 to 20.00Ω
	Open circuit voltage	5V±0.4V DC
	Measuring current	200mA DC(nominal value)
	Accuracy	±3%rdg±5dgt
Insulation resistance test
	Rated volatge	250V	500V
	Measuring range	0.00 to 20.00MΩ
	No-load voltage	250V DC +20%,-0%	500V DC +20%,-0%
	Short circuit current	1.5mA DC or less
	Accuracy	±2%rdg±3dgt
Load current/Leakage current test
	Item	Load current	Leakage current
	Mains voltage range	100 to 253V/50Hz
	Measuring range	0.10 to 10.00A rms	0.10 to 20.00mA rms
	Accuracy	±10%rdg±5dgt	±3%rdg±5dgt
RCD test
	Rated voltage	230V -15% to +10%/50Hz
	Rated current	10/30mA
	Function	× 1	× 5
	Test duration	0.0 to 500.0ms	0.0 to 40.0ms
	Operating time accuracy	±2ms(≦40ms),±8ms(>40ms)
Power source		LR6(AA)(1.5V) × 6
Applicable Standards		IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030, IEC 61010-2-034 IEC/EN61010-031, EN61326-2-2, AS/NZ3760
Dimension / Weight		261(L) × 104(W) × 57(D)mm / Approx. 940g(including batteries)

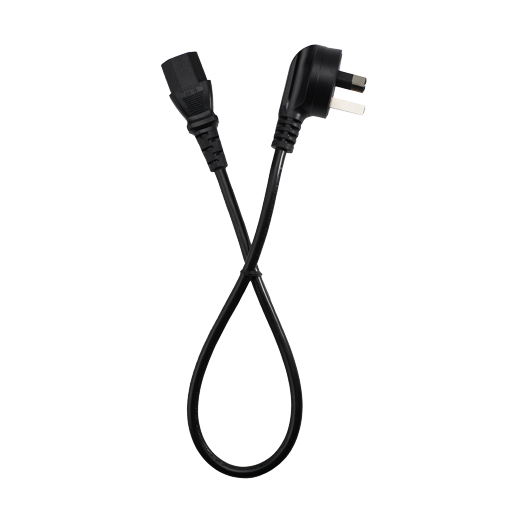

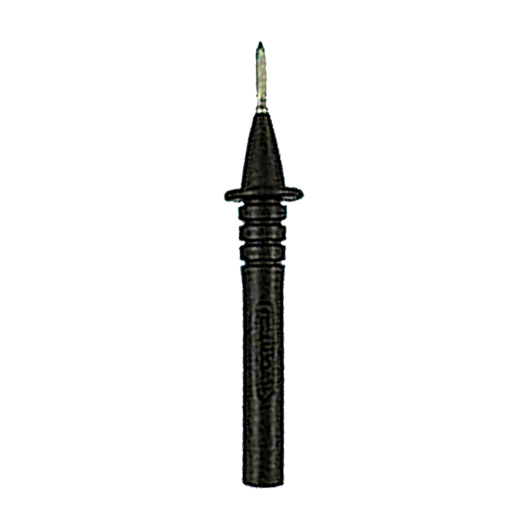

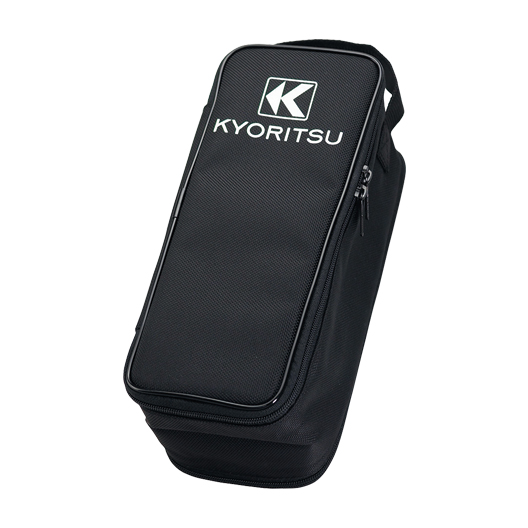

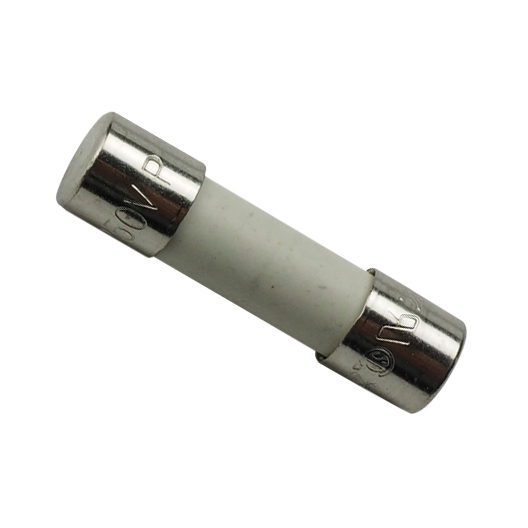

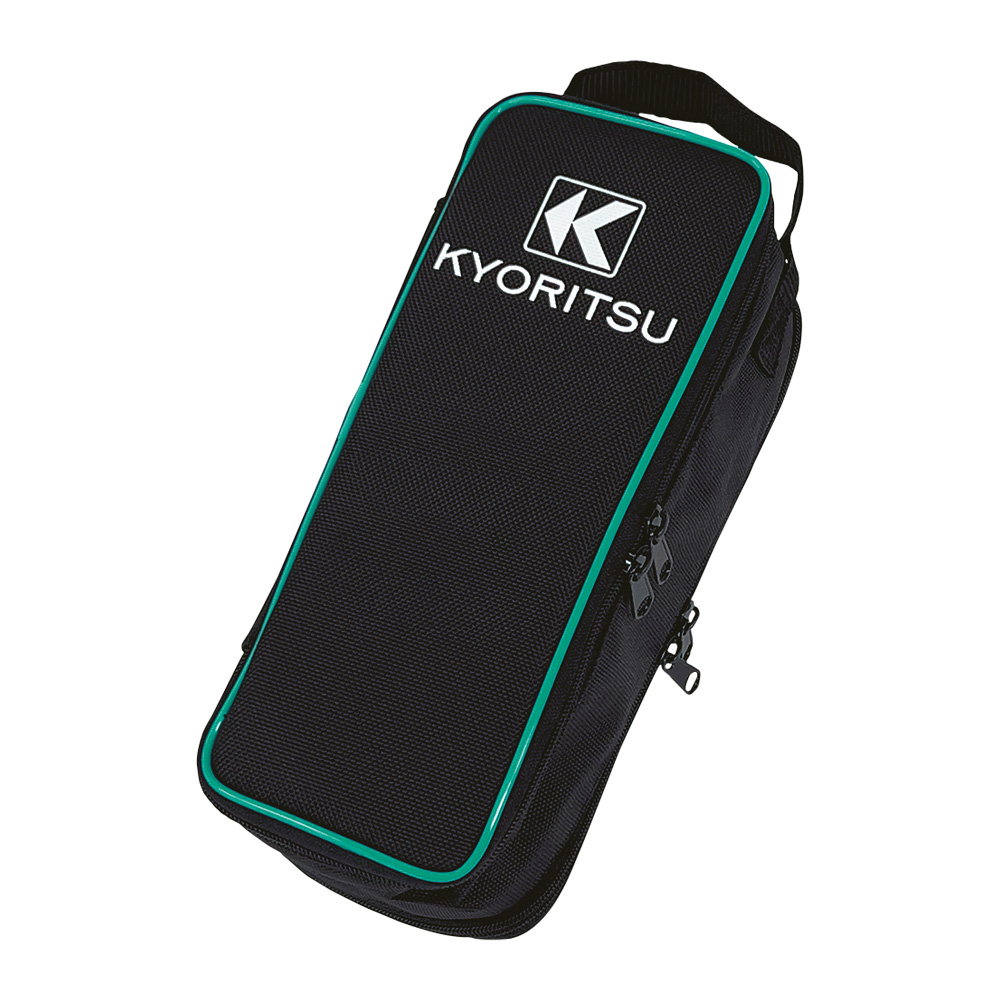

Accessories		7277(Mains lead), 7129A(Test lead with Alligator clip), 7161A(Flat test prod[black]), 7276(Adapter for Extension cord), 9193(Carrying case), 8928(Fuse[10A/250V]), 9121(Shoulder strap), Buckle, LR6(AA) x 6, Instruction manual

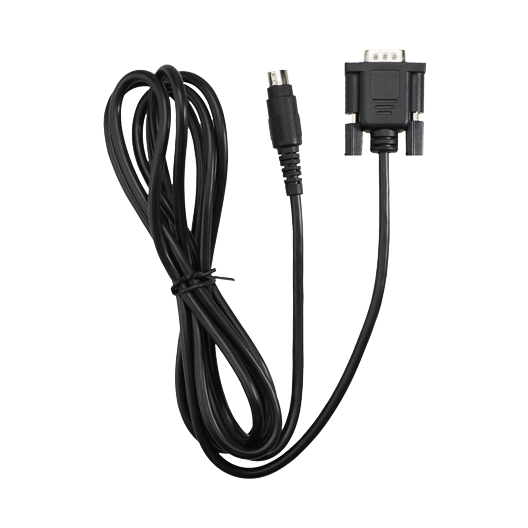

Optional Accessories		7219(USB cable), 7275(Printer cable:Mini Din 6pin-D-sub 9pin), 7248(Test lead with Alligator clip and Flat test probe)
